Hoparlörler

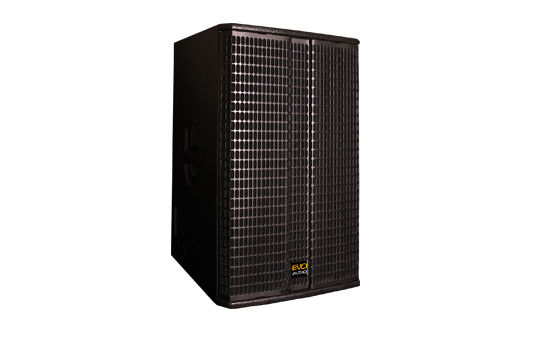

DS-12

· 12" woofer with 3” coil
· 1” throat, 1.75” coil compression driver
· Frekans Response: 55Hz-20Khz +- 3dB
· Rated Power RMS: 350W
· Sensitivity: 98dB
· Maximum SPL: 125dB peak, 119dB continuous
· Nominal Impedance: 8 ohm
· Dispersion Angle: 80° horizantal, 50° vertical
· Connection Mode: 2xNeutrik NL4

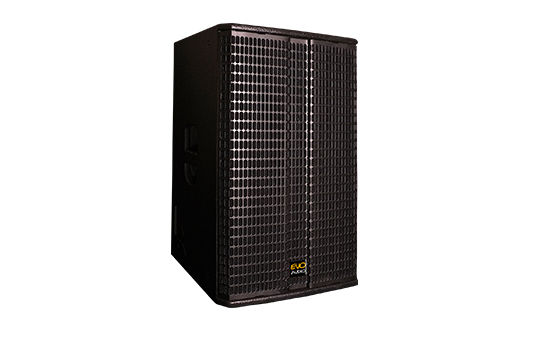

DS-15

· 15" woofer with 3” coil
· 1.4” throat, 3” coil compression driver
· Frekans Response: 55Hz-20Khz +- 3dB
· Rated Power RMS: 410W
· Sensitivity: 100dB
· Maximum SPL: 131dB peak, 126dB continuous
· Nominal Impedance: 8 ohm
· Dispersion Angle: 80° horizantal, 50° vertical
· Connection Mode: 2xNeutrik NL4

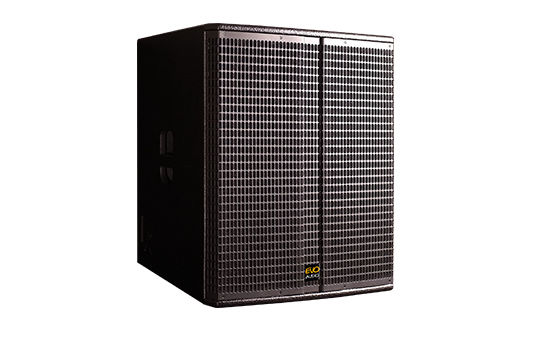

DS-15 Sub

· 15" woofer with 4” coil
· Frekans Response: 45Hz-180Hz +- 3dB
· Rated Power RMS: 500W
· Sensitivity: 98dB
· Maximum SPL: 130dB peak, 124dB continuous
· Nominal Impedance: 8 ohm
· Connection Mode: 2xNeutrik NL4
· 35 Kg

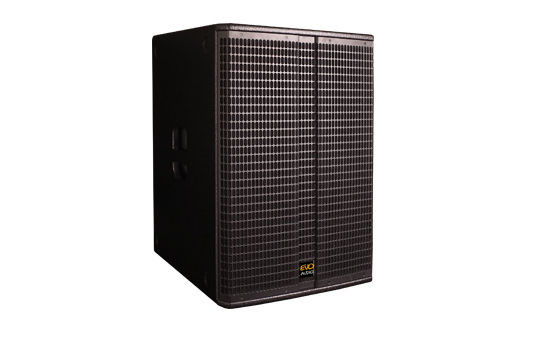

DS-18 Sub

· 18" woofer with 4” coil
· Frekans Response: 42Hz-180Hz +- 3dB
· Rated Power RMS: 600W
· Sensitivity: 98dB
· Maximum SPL: 134dB peak, 128dB continuous
· Nominal Impedance: 8 ohm
· Connection Mode: 2xNeutrik NL4
· 45 Kg

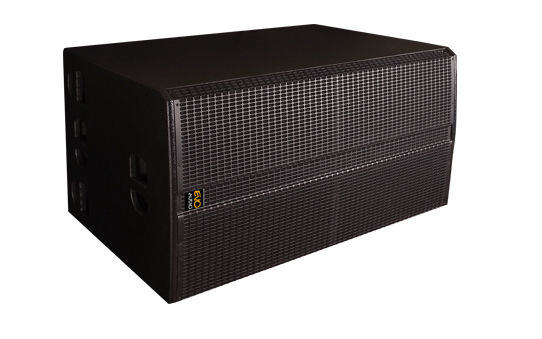

DS - 218 Sub

· 2x18" woofer with 4” coil
· Frekans Response: 38Hz-200Hz +- 3dB
· Rated Power RMS: 1200W
· Sensitivity: 102dB
· Maximum SPL: 138dB peak, 132dB continuous
· Nominal Impedance: 4 ohm
· Connection Mode: 2xNeutrik NL4
· Handing Assembling: 4x4” castors
· 85Kg

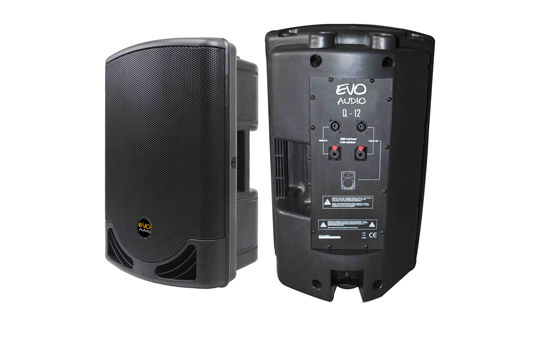

Q-12

· 12" woofer with 3” coil
· Frekans Response: 45Hz-20Khz +- 3dB
· Rated Power RMS: 250W
· Peak Power: 500W
· Sensitivity: 99dB
· Maximum SPL: 122dB continuous
· Nominal Impedance: 8 ohm
· Connection Mode: 2xNeutrik NL4
· ABS Material

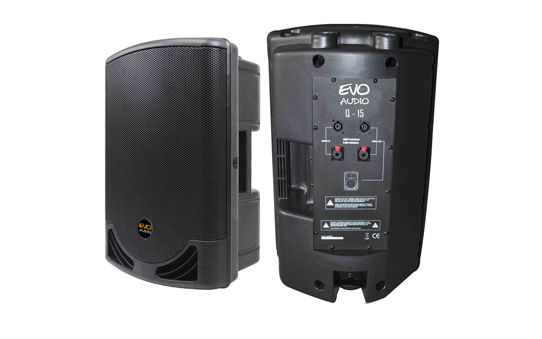

Q-15

· 15" woofer with 3” coil
· Frekans Response: 45Hz-20Khz +- 3dB
· Rated Power RMS: 300W
· Peak Power: 600W
· Sensitivity: 100dB
· Maximum SPL: 124dB continuous
· Nominal Impedance: 8 ohm
· Connection Mode: 2xNeutrik NL4
· ABS Material

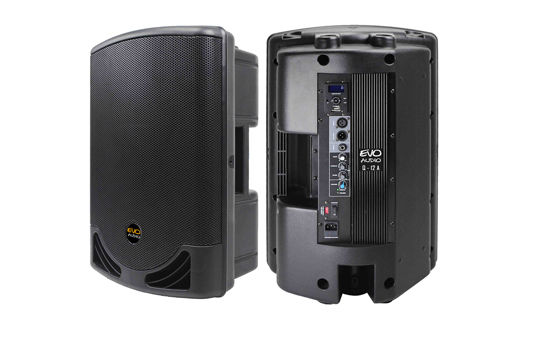

Q-12 A

· 12" woofer with 3” coil Active Speaker
· Frekans Response: 45Hz-20Khz +- 3dB
· Rated Power RMS: 250W
· Peak Power: 500W
· Sensitivity: 99dB
· Maximum SPL: 122dB continuous
· Nominal Impedance: 8 ohm
· Connection Mode: 2xNeutrik NL4
· ABS Material

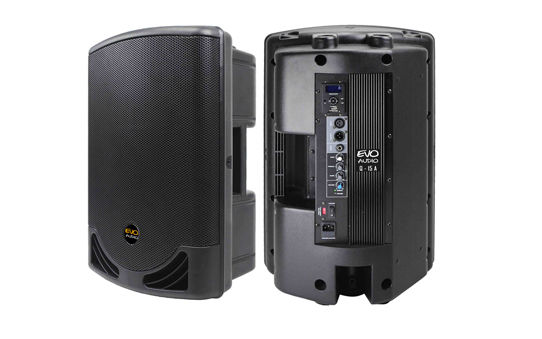

Q-15 A

· 15" woofer with 3” coil Active Speaker
· Frekans Response: 45Hz-20Khz +- 3dB
· Rated Power RMS: 300W
· Peak Power: 600W
· Sensitivity: 100dB
· Maximum SPL: 124dB continuous
· Nominal Impedance: 8 ohm
· Connection Mode: 2xNeutrik NL4
· ABS Material

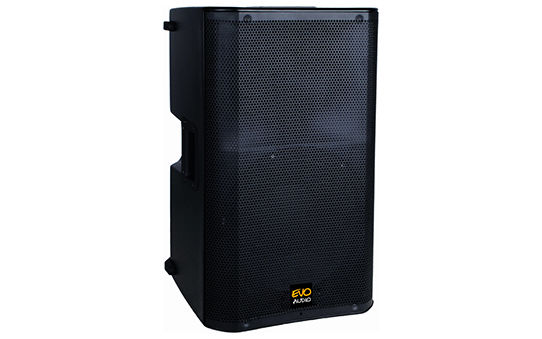

XT-12

· 12" woofer with 3” coil
· Frekans Response: 55Hz-20Khz +- 3dB
· Rated Power RMS: 350W
· Peak Power: 700W
· Sensitivity: 97dB
· Maximum SPL: 112dB peak
· Nominal Impedance: 8 ohm
· Connection Mode: 2xNeutrik NL4
· Fiberglass Material

XT-12 A

· 12" woofer with 3” coil Active Speaker
· Frekans Response: 55Hz-20Khz +- 3dB
· Rated Power RMS: 350W
· Peak Power: 700W
· Sensitivity: 97dB
· Maximum SPL: 112dB peak
· Nominal Impedance: 8 ohm
· Connection Mode: 2xNeutrik NL4
· Fiberglass Material

XT-15

· 15" woofer with 3” coil
· Frekans Response: 50Hz-20Khz +- 3dB
· Rated Power RMS: 450W
· Peak Power: 900W
· Sensitivity: 98dB
· Maximum SPL: 112dB peak
· Nominal Impedance: 8 ohm
· Connection Mode: 2xNeutrik NL4
· Fiberglass Material

XT-15A

· 15" woofer with 3” coil Active Speaker
· Frekans Response: 50Hz-20Khz +- 3dB
· Rated Power RMS: 450W
· Peak Power: 900W
· Sensitivity: 98dB
· Maximum SPL: 112dB peak
· Nominal Impedance: 8 ohm
· Connection Mode: 2xNeutrik NL4
· Fiberglass Material

XT-8

· 8" woofer
· Frekans Response: 55Hz-20Khz +- 3dB
· Rated Power RMS: 200W
· Peak Power: 400W
· Sensitivity: 93dB
· Maximum SPL: 120dB Peak
· Nominal Impedance: 8 ohm
· Fiberglass Material

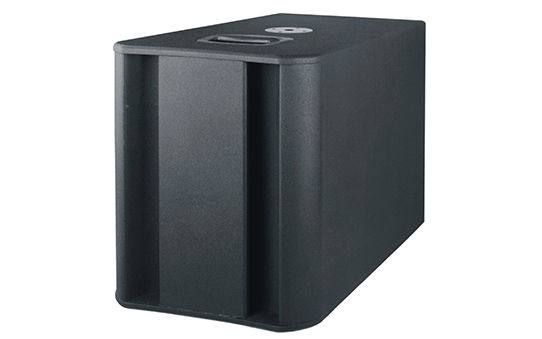

XT-118 Sub

· 18" Active woofer
· Frekans Response: 38Hz-500hz +- 3dB
· Rated Power RMS: 900W
· Peak Power: 1800W
· Sensitivity: 103dB
· MDF Material

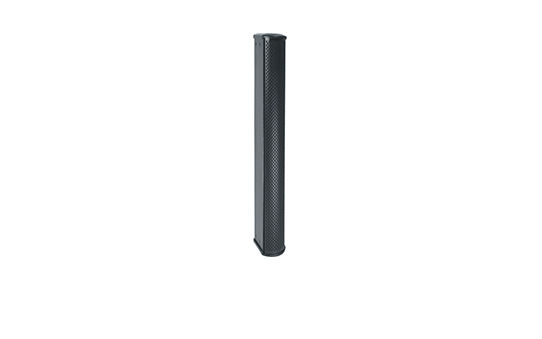

DC-4

· 4 x ribbon tweeter
· 8 x 3" Lf driver
· Frekans Response: 110Hz-18Khz +- 3dB
· Rated Power RMS: 120W
· Sensitivity: 98dB
· Maximum SPL: 120dB peak
· Nominal Impedance: 8/16 ohm
· Connection Mode: 2xNeutrik NL4
· Birch Plywood material

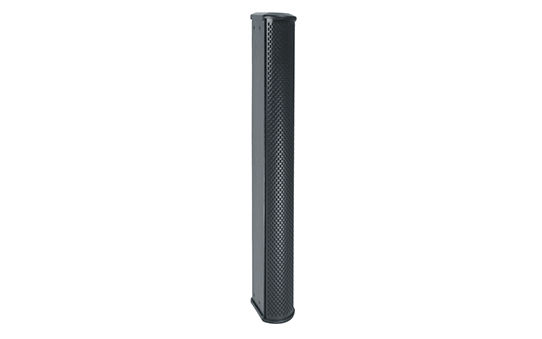

DC-8

· 8 x 3" Fullrange driver
· Frekans Response: 110Hz-18Khz +- 3dB
· Rated Power RMS: 240W
· Sensitivity: 98dB
· Maximum SPL: 120dB peak
· Nominal Impedance: 8/16 ohm
· Connection Mode: 2xNeutrik NL4
· Birch Plywood material

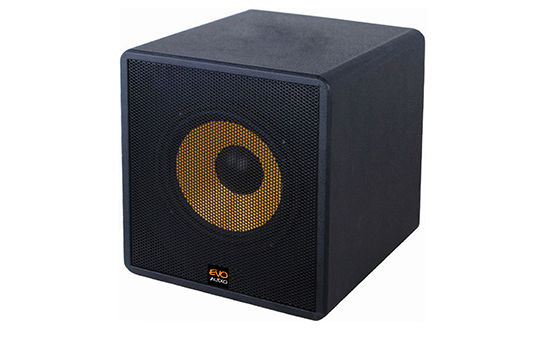

DC-10 Sub A

· 10" Active Subbass Speaker
· 10" woofer
· Frekans Response: 48Hz-800hz
· Rated Power RMS: 300W (Sub) + 2x80W (Satallite)
· Sensitivity: 92dB
· Connection Mode: 2xNeutrik NL4
· MDF Material
